PlantPredict

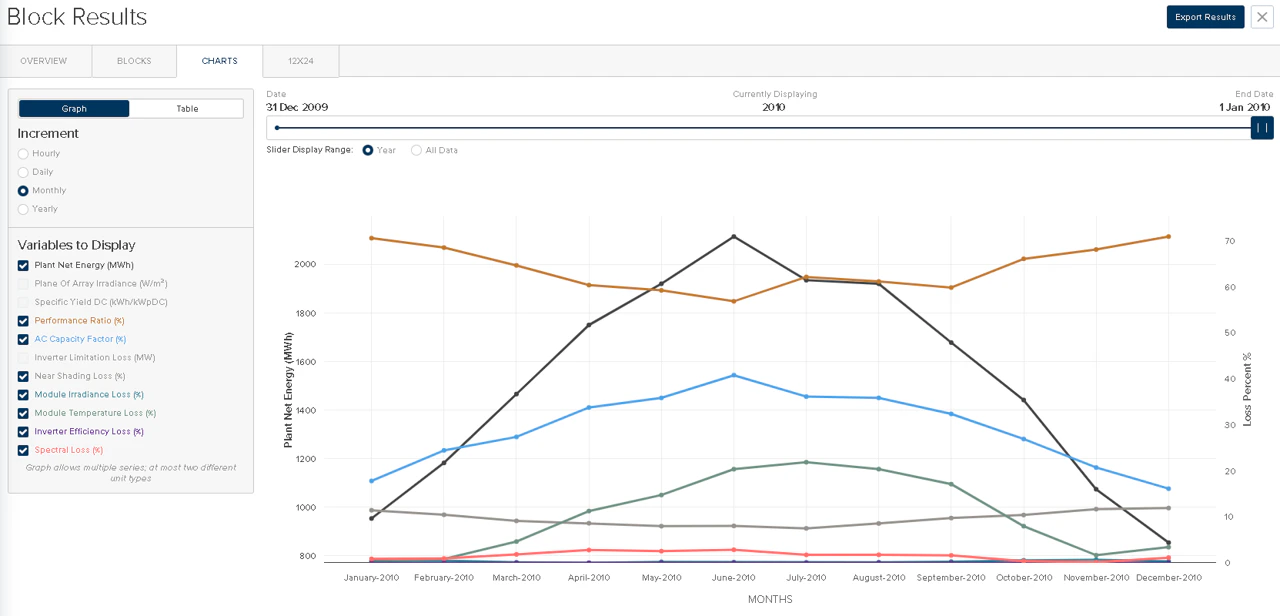

Results Charts: More Variables and Smarter Grouping
The results Charts tab now supports up to six variables at once (previously two) and correctly displays data for all selected variables. On the graph, series can be grouped by unit of measurement (for example, MWh and percentage), and series labels that were previously truncated now display in full.

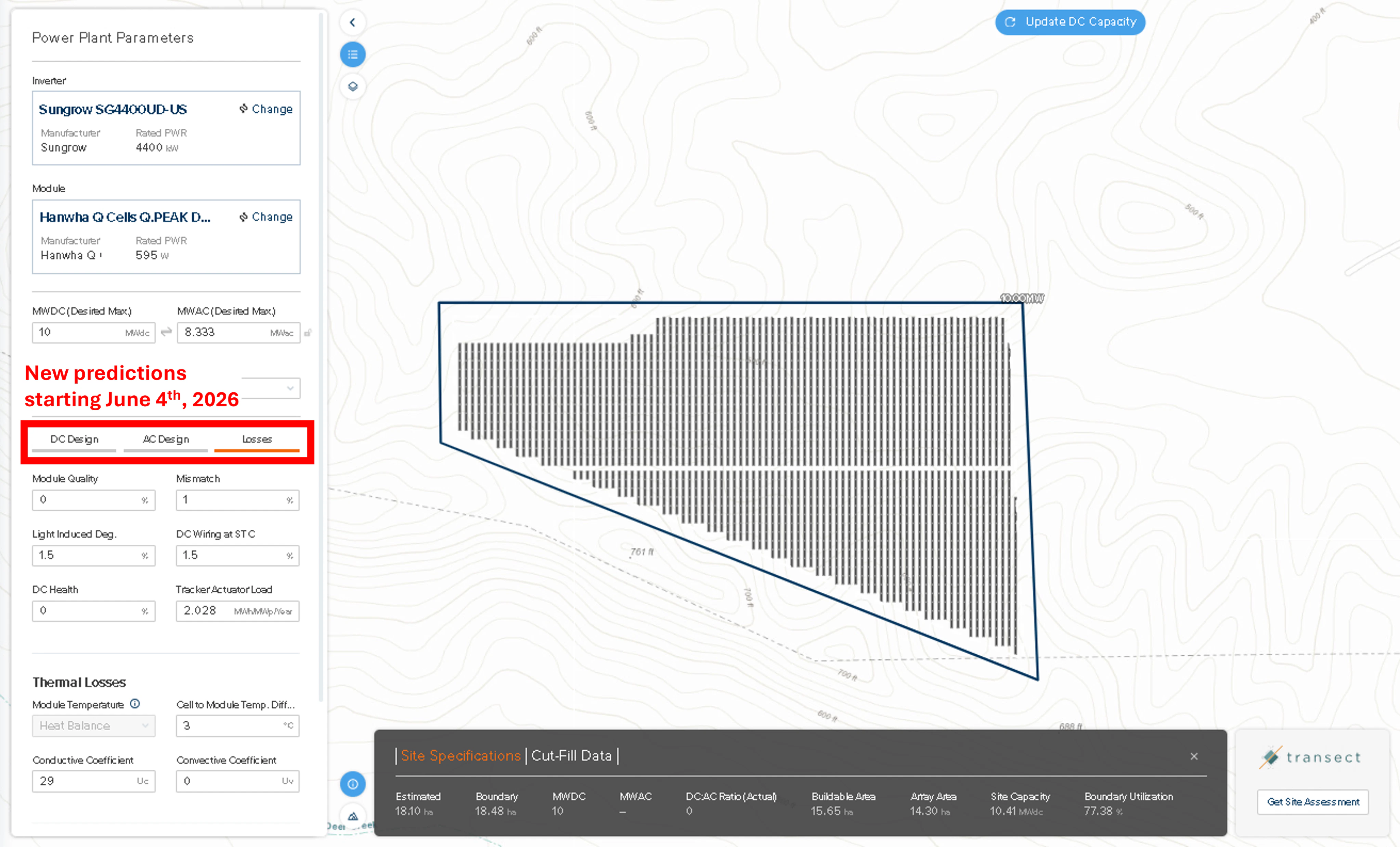

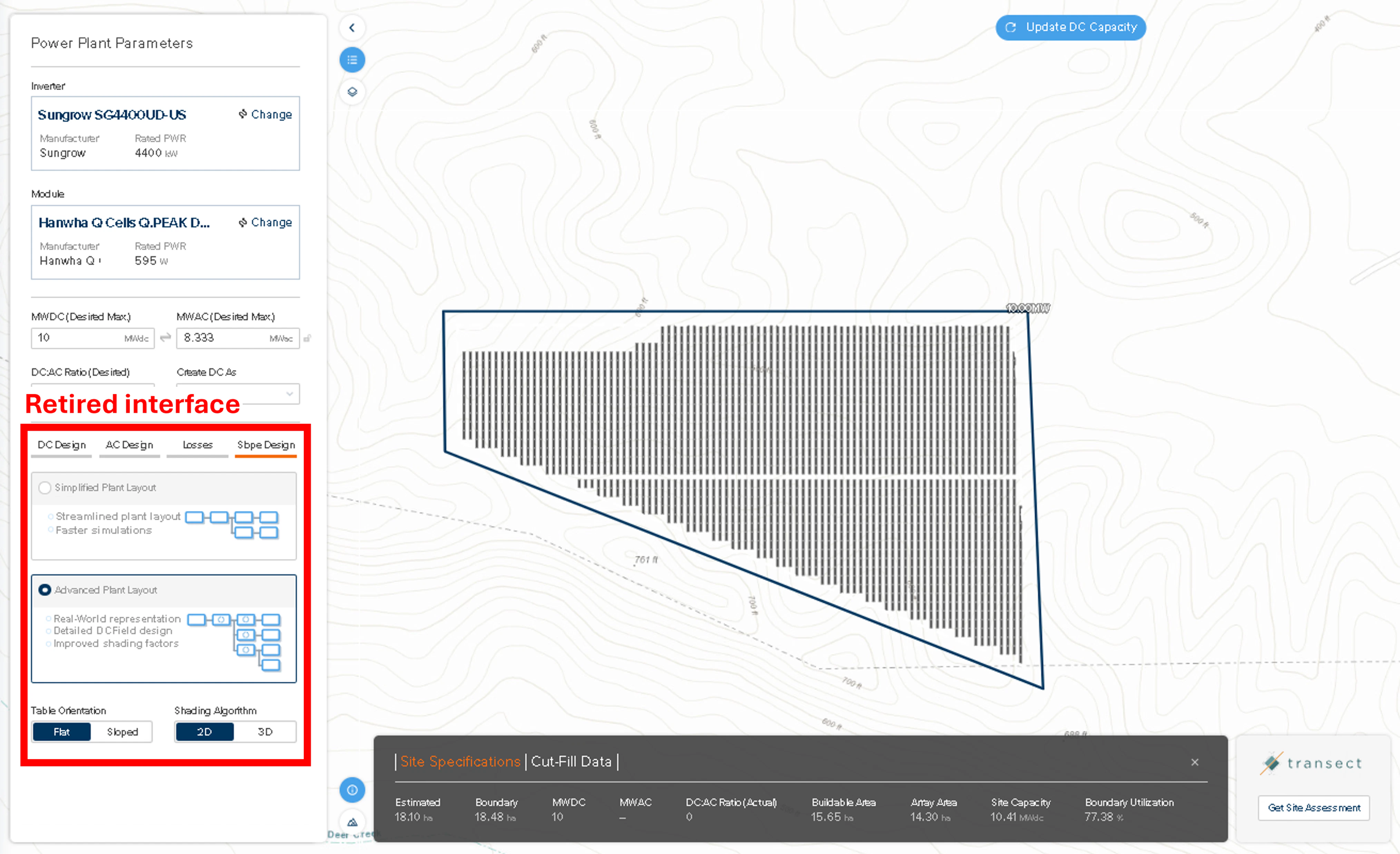

Map Builder: Slope Design and Advanced Layout Retired
Map Builder predictions created on or after the release date no longer expose the Slope Design tab or the Advanced Plant Layout option, and now default to Simplified Plant Layout. 3D terrain, shading, and transposition should now be handled through the 3D scene interface. Predictions created before the release date that already used Advanced Layout are unaffected and retain it.
Faster Prediction Engine Scaling
PlantPredict’s prediction engines now scale up faster. Combined with updated scaling rules, autoscaling is more responsive, so large influxes of prediction requests reach full capacity sooner and users spend less time waiting in the queue.Improvements and Bug Fixes
- Updated branding—Refreshed PlantPredict and Terabase logos and the browser favicon throughout the UI, including on generated reports such as the 8760 and Plant Summary.
- Improved “My…” filters—Selecting My modules (or My weather, etc.) now automatically deselects the Active and Global filters so you land directly on your items, and filter selections persist as you navigate.
- 1-minute resolution nodal data—Fixed an error that occurred when exporting nodal data for one-minute-resolution predictions. The prediction previously stalled near completion; nodal data is now generated and stored so the run finishes and the data is accessible.
- Prediction queue—Fixed a “maximum number of attempts reached while trying to add prediction to queue” error.
- Create Shade Scene from Map—Fixed an incorrect transform that left the scene distorted when creating a shade scene from a map layout, with the distortion more pronounced at higher latitudes.
- DC Field hover—Hover values such as row spacing no longer show excessive decimal places, and missing units have been added.
- Cloning predictions (legacy 3D)—Custom objects in legacy DC-field-level 3D scenes no longer disappear after cloning a prediction, and project exports now include the DC field object.
- SolarGIS documentation link—Fixed a broken link to the SolarGIS documentation.
- Inverter logic convergence (V13 beta)—Fixed a non-converging inverter region selection that could produce near-zero power outliers at high irradiance for isolated timesteps.
- 3D shade scenes (V13 beta)—Fixed a timestamp offset in 3D shade scene results.
Pro Tools
Terrain Pro: Improved Reliability for Large File Imports

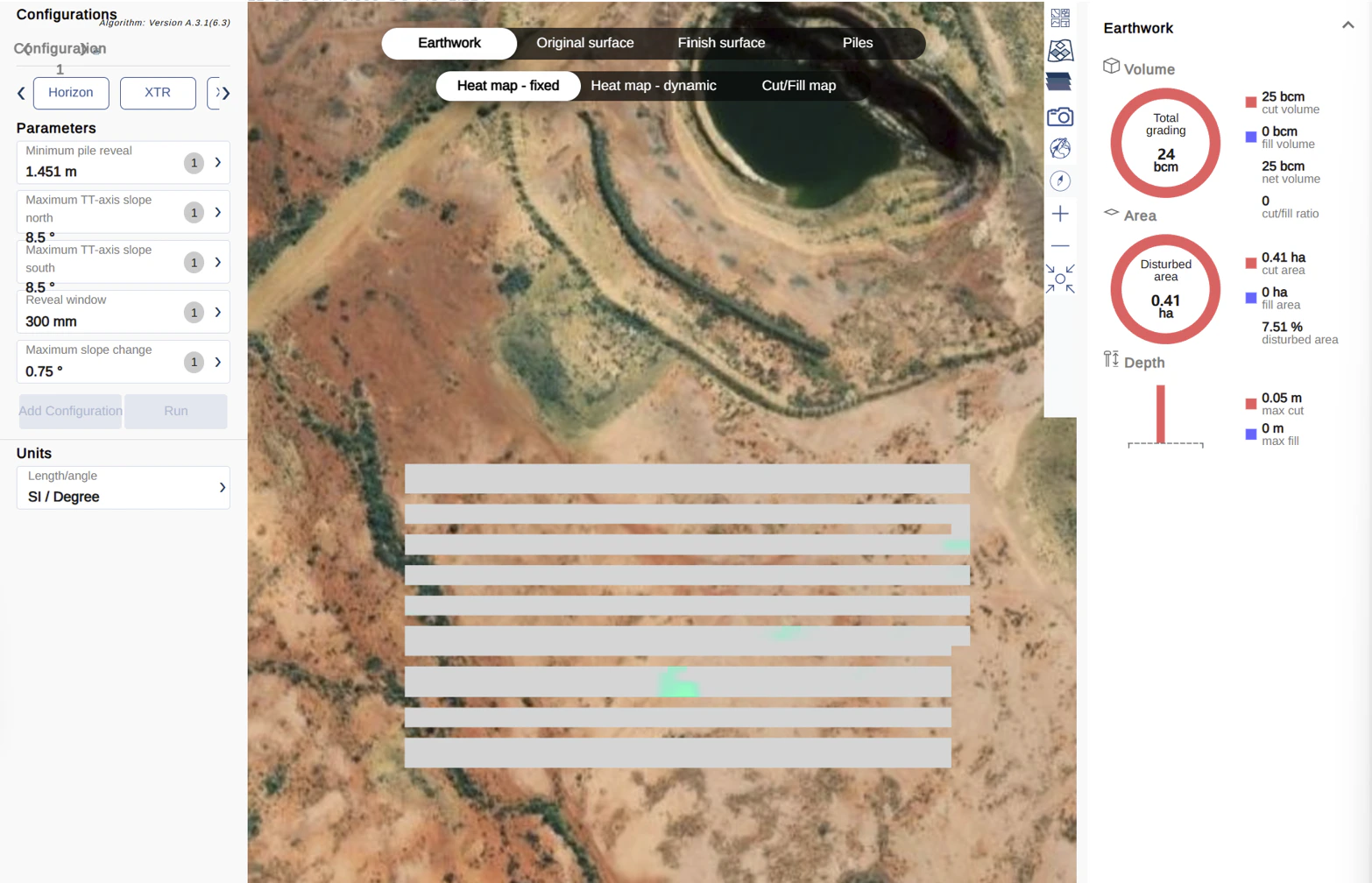

Enhanced file import performance and stability for DXF, XLSX, and CSV datasets. Users working with large design files should experience more reliable uploads and reduced risk of processing interruptions during import workflows.Terrain Pro: Improved Earthwork Surface Generation on Smaller Sites
Resolved an issue that could cause earthwork analysis visualizations to display fragmented or discontinuous grading areas on smaller project sites. Earthwork surfaces are now generated more accurately, resulting in a continuous and representative grading visualization.
