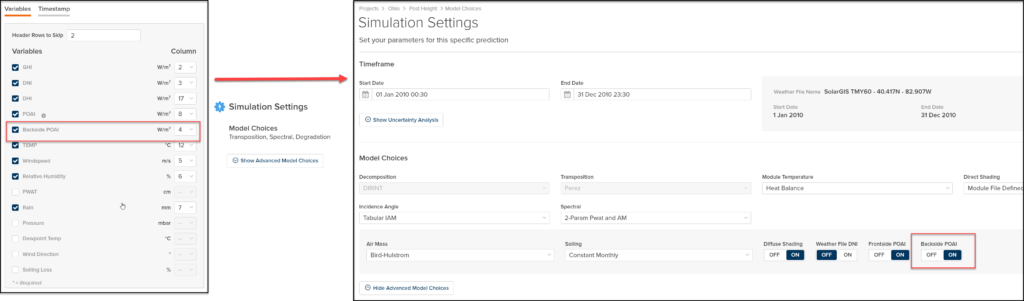

February 23, 2023 Backside POAI can now be uploaded and used when running a Prediction If you are a PlantPredict Subscriber, you can upload a weather file containing Backside POAI and have that data utilized within your prediction.  For many of our customers who are checking the expected energy of a power plant vs the actual energy produced, eliminating the error of converting GHI to POAI using Albedo values will be helpful.
Release 10 18 0 Image1

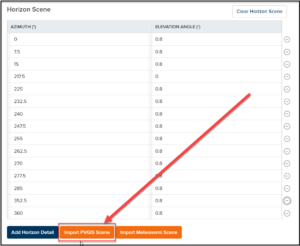

Import Horizon Scene Data from PVGIS In addition to being able to import a Meteonorm Horizon Scene with a click of a button, our PlantPredict Subscribers can now also import a PVGIS Horizon Scene.  This gives you options and also greater coverage around the globe.
Release 10 18 0 Image2
KMZ File Upload improvements in the Dev Platform We have simplified the uploading of Boundaries and Constraints/Exclusions within the Dev Platform Site Plan Editor.  If you have a KMZ containing only Boundaries, or a KMZ containing only Exclusions, you can have the boundaries or exclusions drawn automatically with the click of a button.
Release 10 18 0 Image3
Other minor changes
  • We improved the speed of Projects Loading when opening the Dev Platform, and we have added a “My Projects” tab so that by default only the projects that a user has created will be loaded initially.  Users can still see all projects for their Company by clicking the Company projects tab.
  • Added the Simulation Date and Time, along with the Site Plan used to the Simulation Inputs information in the Dev Platform.
  • Added Effective Global POAI and Cell Temperature at Open Circuit in the Nodal Data output for Voltage Pro
  • Extended the Array MWdc and MWac to 3 decimal places in PlantPredict Block Builder interface so users have kW precision.
  • Put an icon in PlantPredict to denote the different prediction types to make it easier to find the prediction you are looking for within a project.
BUG FIXES
  • In the Prediction Results screen, Albedo was appearing as a negative number, when it should be a positive number
  • In MapBuilder, when the MWAc is locked and a user updates the MWDC the DC:AC Ratio was not updating…this has been fixed
  • Rated PWR unit of measure on the Inverter was wrong in the MapBuilder interface.  It showed “W” when it should be “kW”.  Fixed.
  • Resolved an issue causing Simulation Failures in the Dev Platform related to road placement.
